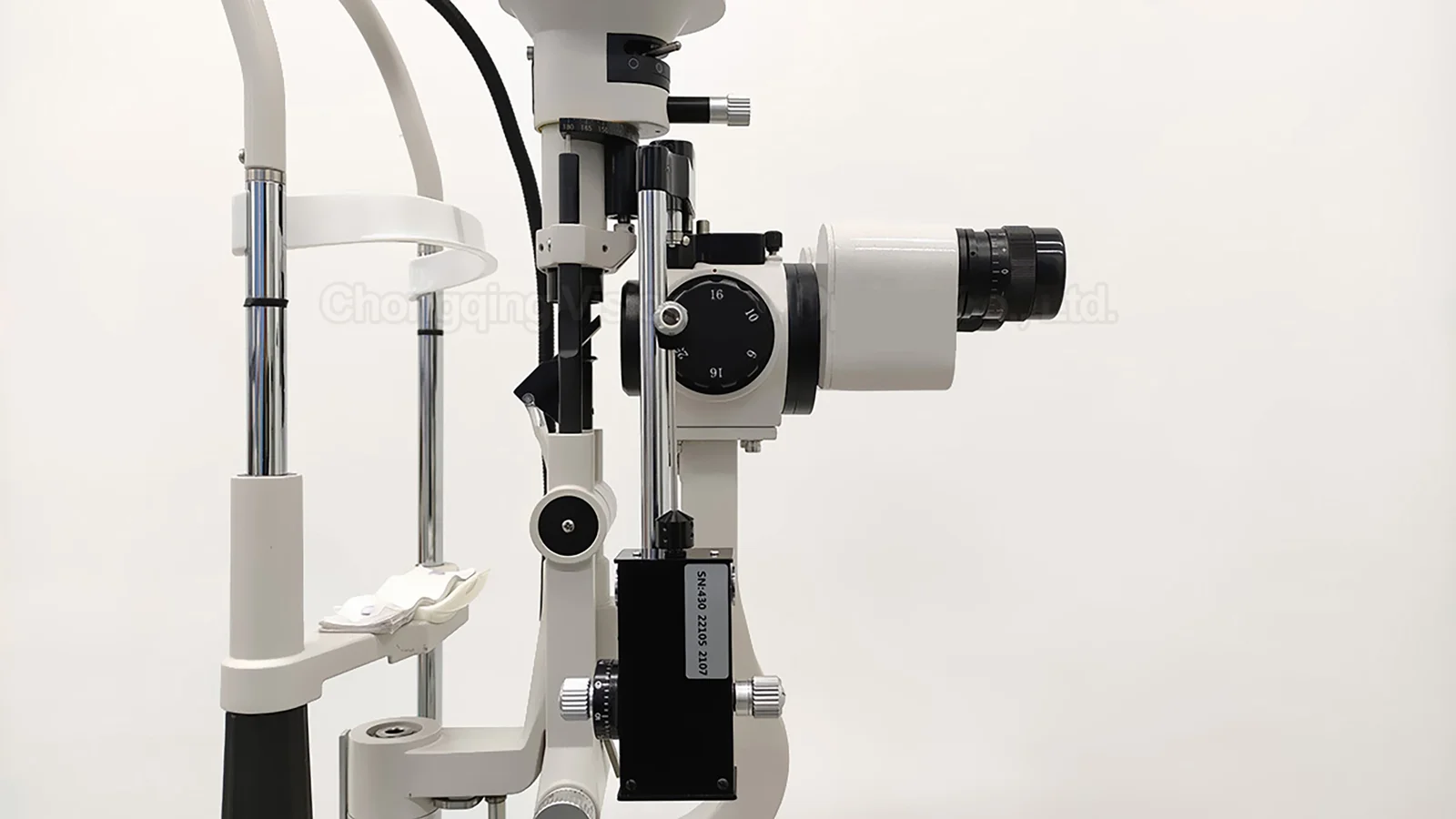

Model:

S5

Illumination Type:

Tower Type

Illumination Source:

Imported LED Lamp

Max Illumination Intensity:

60000 Lux

Microscope Type:

Parallel type, Galilean system

Magnification Changer:

Revolving drum

Eyepiece:

12.5X

Magnification:

6X, 10X, 16X, 25X, 40X

Visual Field Diameter:

6X: 33mm, 10X: 22mm, 16X: 14mm, 25X: 8.5mm, 40X: 5.5mm

Diopter Adjustment:

-7D ~ +7D

Pupil Range:

52mm ~ 82mm

Brightness:

Continuously adjustable

Slit Image Width:

0mm ~ 14mm continuous

Slit Image Length:

1mm ~ 14mm continuous

Slit Image Angle:

0° ~ 180° continuous rotation

Illumination Tilting:

5°, 10°, 15°, 20°

Slit Aperture Size:

Φ14, Φ10, Φ5, Φ3, Φ1, Φ0.2 mm & 1 ~ 14mm continuous

Filter:

Heat absorption, Grey, Red-free (Green), Cobalt blue

Fixation:

Red LED 3.5V

Image Collector:

None

Background Illumination:

None

Input Voltage:

70VA

Input Power:

100V ~ 240V, 48 ~ 62Hz

External Packing:

Carton box

Dimension:

740 × 650 × 450 mm

Gross Weight:

23 kg
